MAIN APPLICATIONS
- General Surgery
- Endoscopy
- Obstetrics
- Gastroenterology
- Room/Ward
- Home-Care
- Veterinary

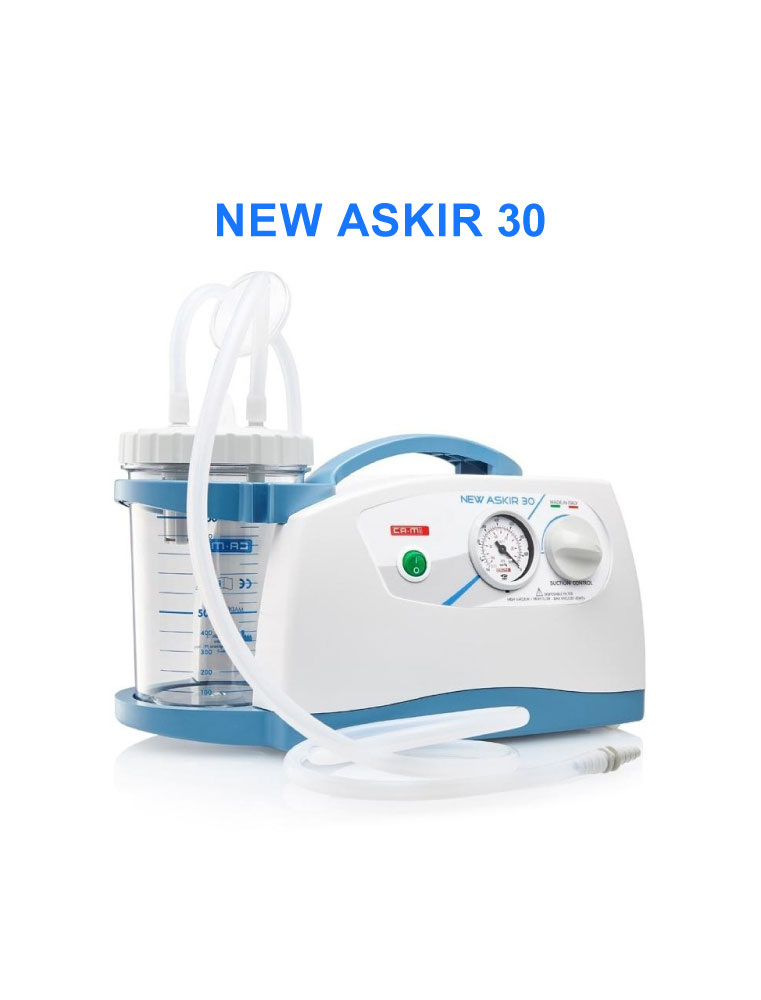

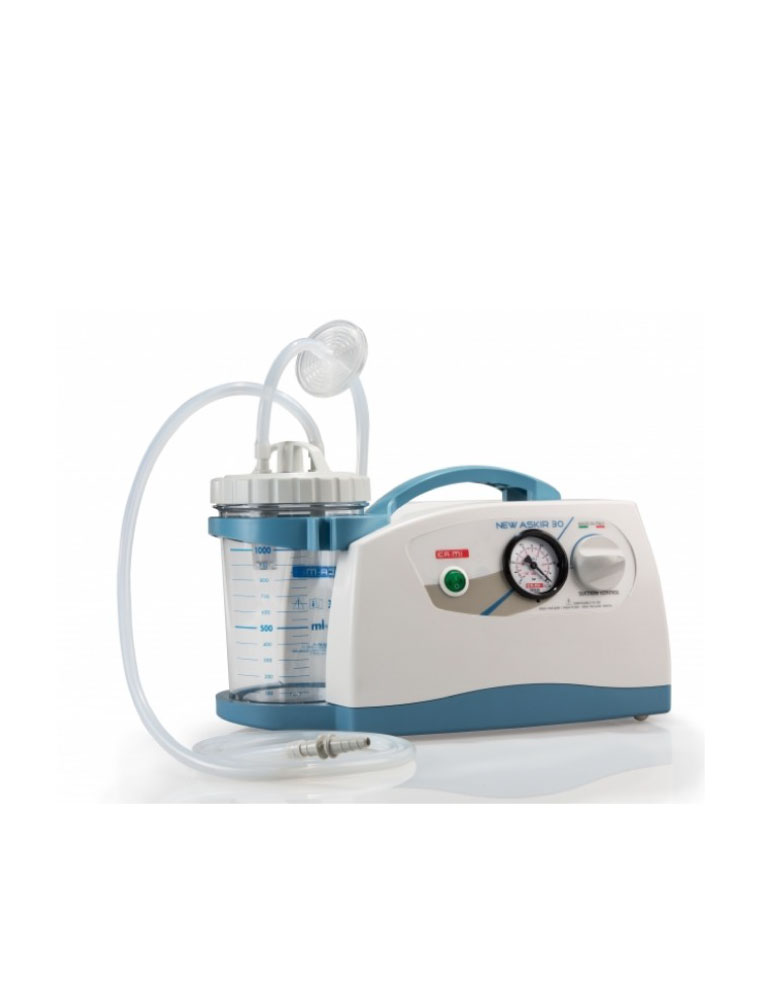

NEW ASKIR 30 is a desk-type electric suction unit suitable for nasal, oral and endotracheal aspiration of bodily fluids (mucus or catarrh) from adults and children. Indicated for tracheotomized patients, minor surgical applications and post-operative therapy in home-care. Main unit equipped with vacuum-meter (mmHg and kPa) and vacuum regulator.
Complies with EN 60601-1-11 “for use in the home healthcare environment” and carries IP21 degree of protection.
AVAILABLE CONFIGURATIONS
 RE 310100/02 |
1000 ml autoclavable jar in policarbonate |
| RE 310100/03 |
2000 ml autoclavable jar in policarbonate |
| with FLOVAC® Disposable Liners |
| RE 310101/02 |
1000ml Flovac® disposable liner and reusable container |
| RE 310100/53 |
2000ml Flovac® disposable liner and reusable container |
| Jars in APEC® autoclavable up to 143°C available upon request |
INCLUDED ACCESSORIES
| Liquid Collection Jar with overflow valve system (different options, see below) |
| 6×10 Silicone Tubes (autoclavable) + Conical Connector ø 8-9-10mm |
| Antibacterial & Hydrophobic Filter (single-patient) |
| CH20 Canula |
| Power Cord with Schuko plug |
FEATURES
| Motor | Oiless and maintenance-free piston pump |
| Power Feeding | 230V-50 Hz |
| ISO 10079-1Classification | HIGH VACUUM / HIGH FLOW |
| Max Vacuum (adjustable) | -0.80 Bar -80kPa – 600 mmHg |
| Noise level | 60,5 dB |
| Max free air flow rate | 40 l/min |
| Power consumption | 110 VA |
| Fuse | 1 xF1,6 A 250 V |
| Duty cycle | Non-stop operation |
| IP Protection Code | IP21 |
| Weight | 3,6 Kg |
| Size | 35x21x18 cm |
| Warranty | 2 years |
| Place of Manufacturing | ITALY |
